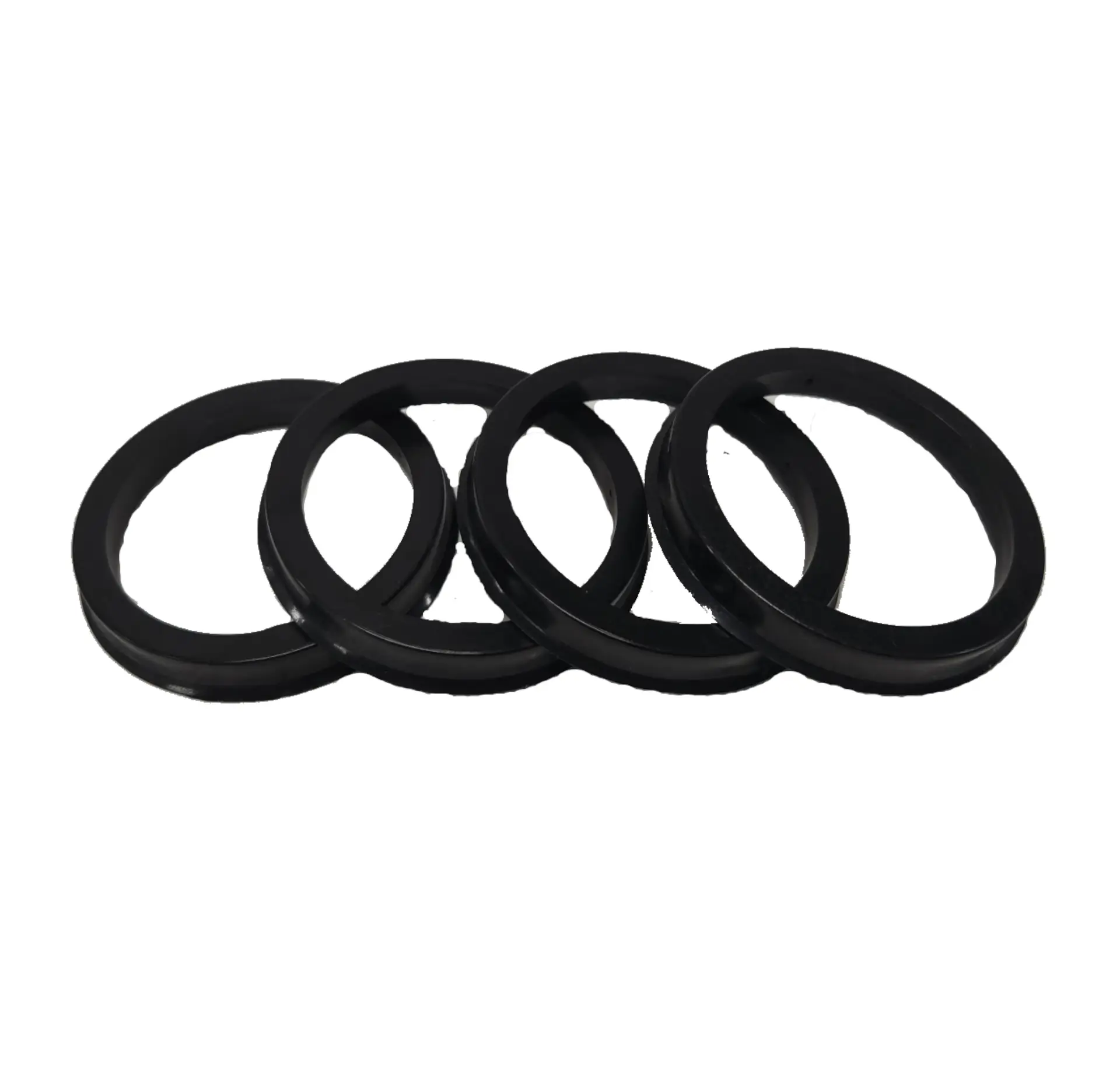

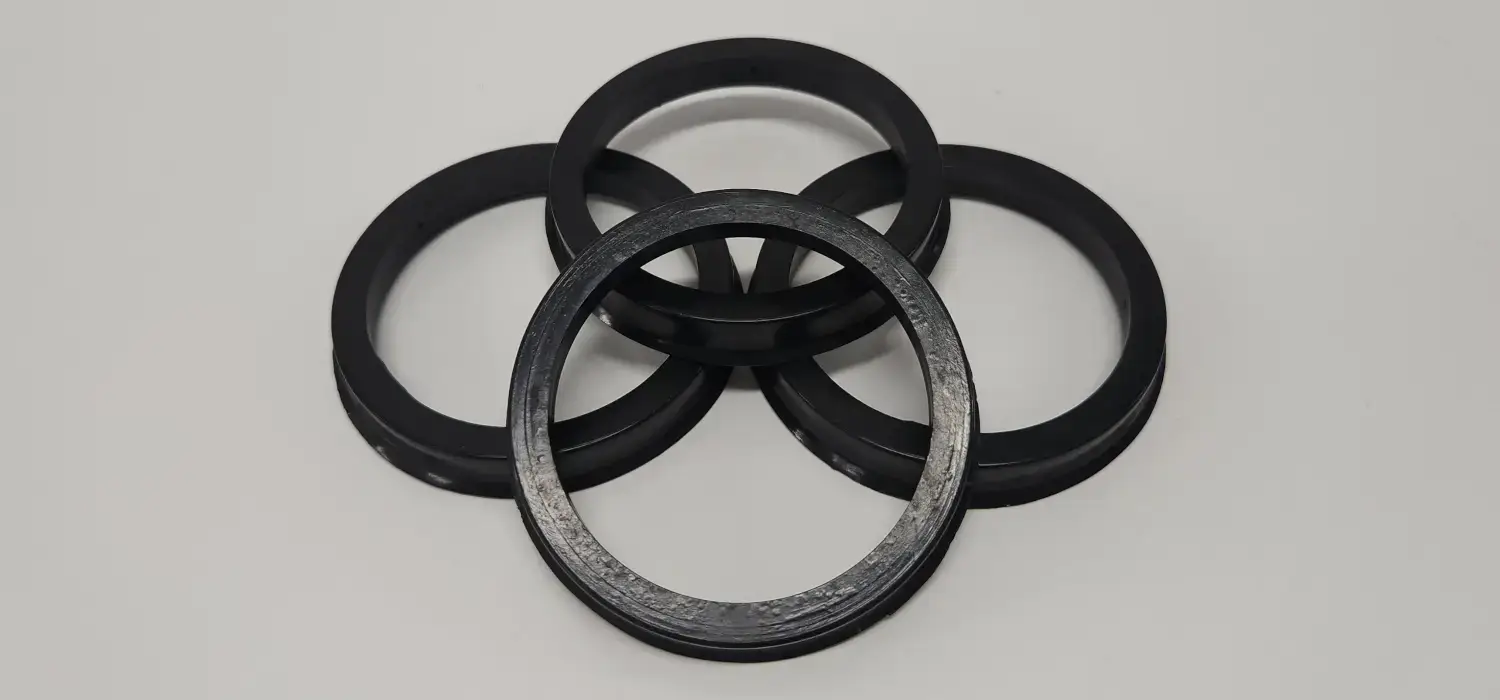

HUB LOCATING RINGS

HUB LOCATING RINGS

Finish | Satin Black

Description | Hub centric rings or ‘Hub Rings’, are used for centrally locating an aftermarket wheel to the vehicles hub. Hub rings aid to install a wheel correctly and can help reduce wheel and tyre assembly vibration. Polycarbonate rings eliminate corrosion between the wheel and the hub which is a common problem when using aluminium hub rings. While assisting the installer to centrally locate the wheel while tightening the lug nuts to the correct torque, Polycarbonate hub rings do not carry load as this is the task of the wheel studs/lug nuts.

Material Outer ID Inner ID
Polycarbonate (PC) 108.1 67.1
Polycarbonate (PC) 108.1 77.9
Polycarbonate (PC) 108.1 93.1
Polycarbonate (PC) 108.1 95.2
Polycarbonate (PC) 108.1 100.1
Polycarbonate (PC) 108.1 106.1
Polycarbonate (PC) 106.1 67.1
Polycarbonate (PC) 106.1 93.1
Polycarbonate (PC) 106.1 95.2
Polycarbonate (PC) 106.1 100.1
Polycarbonate (PC) 73.1 54.1
Polycarbonate (PC) 73.1 56.1
Polycarbonate (PC) 73.1 56.5
Polycarbonate (PC) 73.1 57.1
Polycarbonate (PC) 73.1 59.6
Polycarbonate (PC) 73.1 60.1
Polycarbonate (PC) 73.1 63.5
Polycarbonate (PC) 73.1 64.1
Polycarbonate (PC) 73.1 65.1
Polycarbonate (PC) 73.1 66.1
Polycarbonate (PC) 73.1 66.6
Polycarbonate (PC) 73.1 66.9
Polycarbonate (PC) 73.1 67.1
Polycarbonate (PC) 73.1 69.6
Polycarbonate (PC) 73.1 70.1
Polycarbonate (PC) 73.1 70.7
